Score lines are not a Cricut setting, they are a mark drawn into the file itself, and you will find most free pop-up cards skip it. If you search for free pop up birthday card svg files, you will find that a cricut pop up birthday card file is only as good as its marked folds.
The same goes for a pop up birthday card svg you save for later, and for any cricut pop up birthday cards free svg download you try first.
Two of the six birthday cards below come with a scored version and a dashed version, so your machine gets the mark it actually honours instead of forcing one on it.
One thing worth checking before you download any of them: whether it is really a birthday design, or a seasonal one recoloured to look like it.
Which free pop-up SVG gives you real score lines
Pop Up Photo Card and Pop Up Gift Card Holder. Both come with a scored version and a dashed version, plus a video walkthrough, so whichever your machine honours is already drawn for you.
The other four fold from how the layers stack together, with no marked line to follow, so a scoring tool helps but nothing here requires one.
A scored version and a dashed version means you never fight your own machine
A scored line asks your machine to press, not cut. A dashed line asks it to cut a broken line you fold by hand afterwards.
Give a machine the wrong one and the fold ends up wherever your eye put it, not where the design meant it to be.
Machines and cutting software disagree about which of the two they honour, so you will see a file that only offers one fail on half the setups it reaches.
That is the actual reason I see a fold go crooked more often than the mechanism itself does.
The designer behind the Pop Up Photo Card draws both a scored version and a dashed version instead of picking one and hoping your setup agrees.
That is not a small convenience: it is the difference between a fold that lands where the design intended and a fold you eyeball against a ruler.

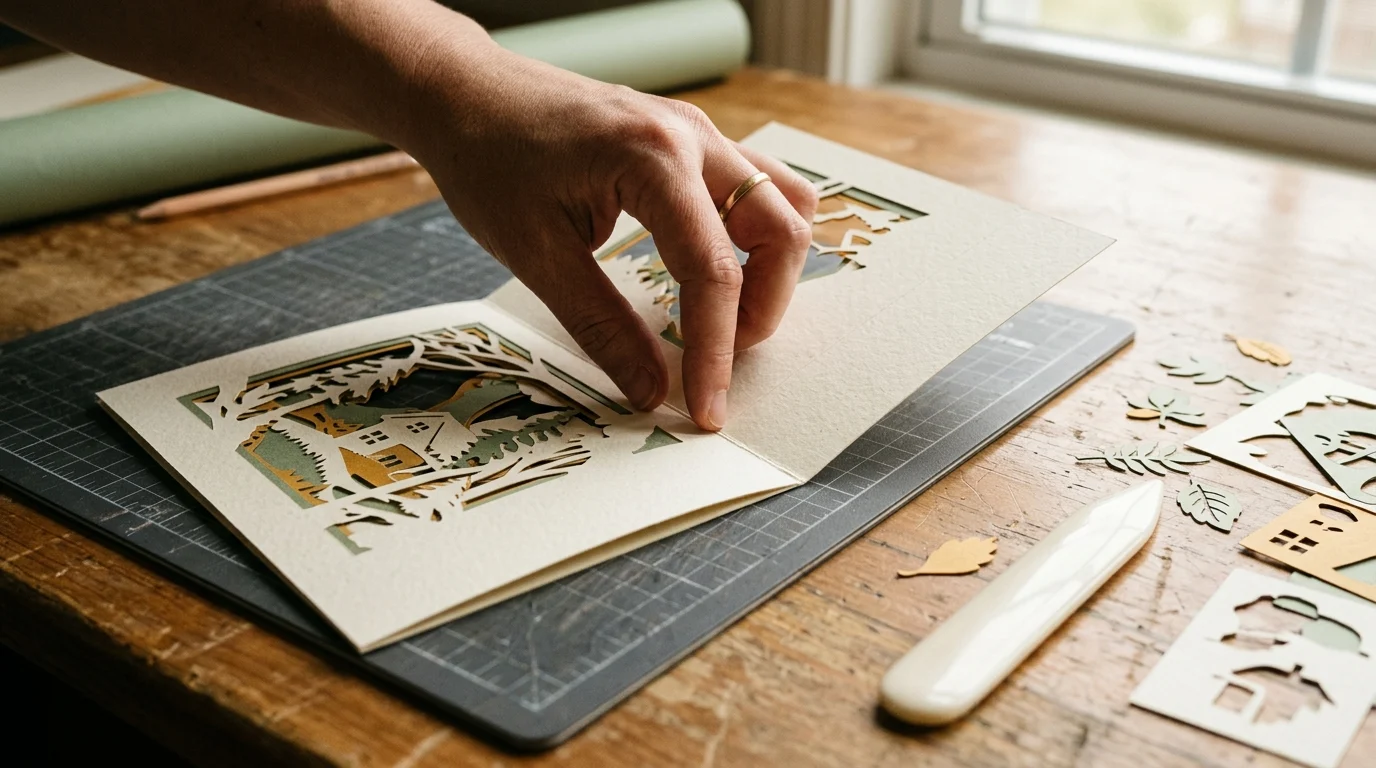

A scored fold on the left, a dashed cut line on the right, two ways to land the same crease.
Pop Up Photo Card ships scored and dashed, and holds three things afterwards
Pop Up Photo Card
The photo area twists up from the middle, with two more frames and a note pocket. Comes with both a scored and a dashed version, plus a video walkthrough.
Best if your machine is fussy about score lines. Skip it if you just want a quick cut-and-go card.
Pop Up Gift Card Holder gives the same scored-and-dashed choice for a smaller job
Pop Up Gift Card Holder
Same scored-and-dashed choice as the photo card, in the shortest build here.
Best if the present is bought and the card is just the wrapper. Skip it if the card should be the gift.

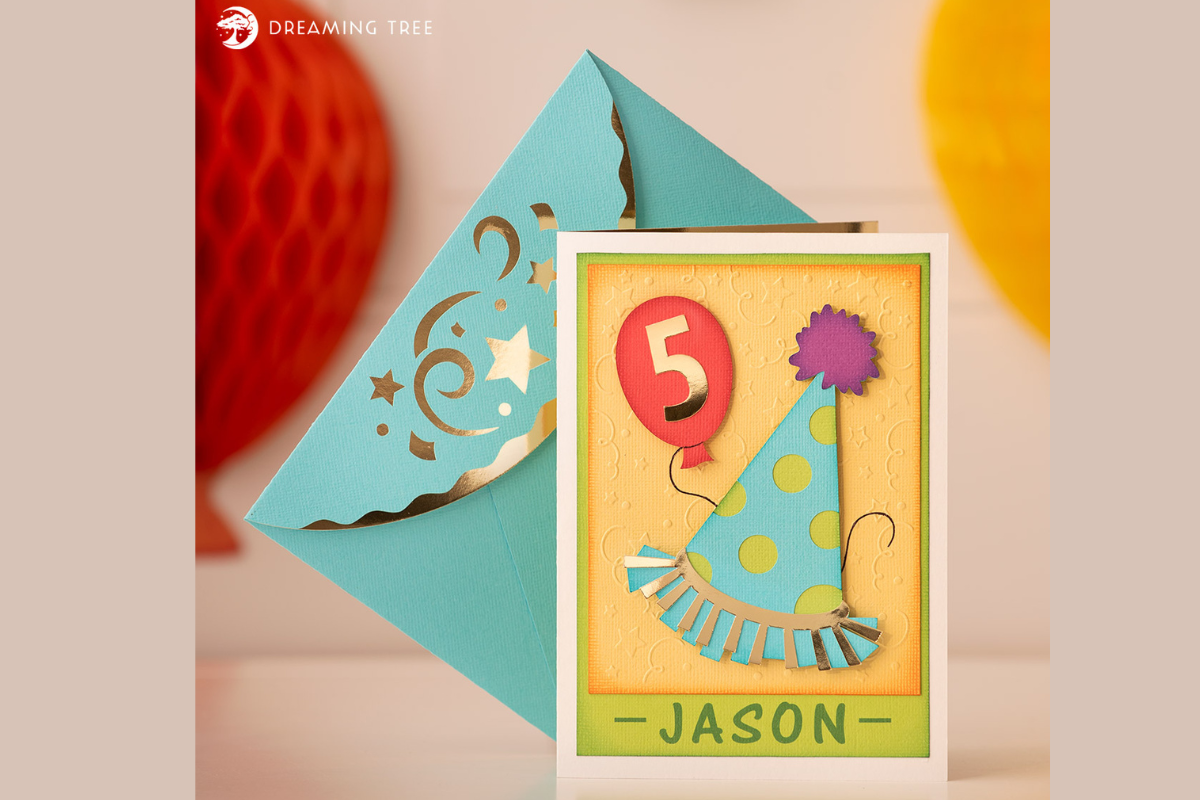

Birthday Balloons puts the name and age on the front instead
Birthday Balloons Pop Up Card SVG
7 by 5, envelope included. Front takes a name and age; inside opens on balloons, confetti and a gift box cutout. Needs two sheets of gold foil paper.
Best if the card should name whose birthday it is. Skip it if gold foil isn’t on hand.
Gentle Giraffe and Little Lion both branch on print then cut

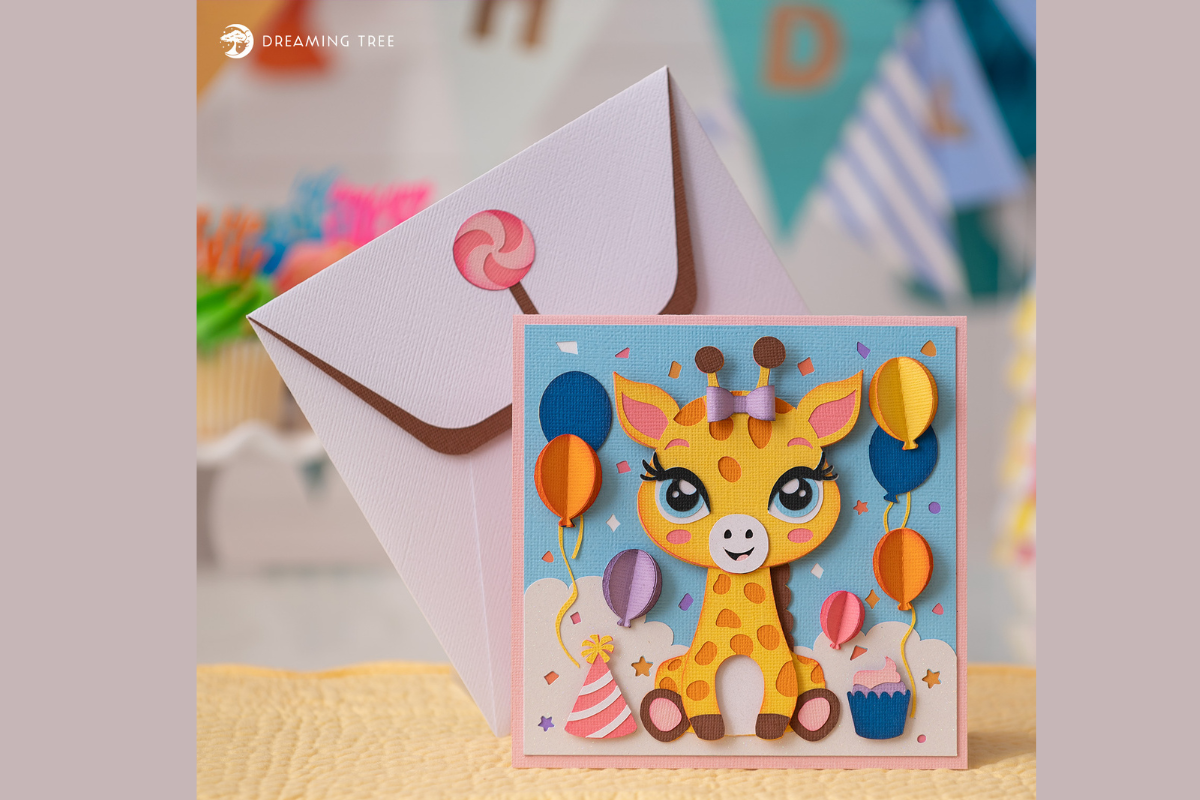

Gentle Giraffe Pop Up Card SVG
A small square card that folds flat for the post. Fifteen paper lines, two marked for print then cut, plus a stencil sheet if you skip that step.
Best if your machine does print then cut well. Skip it if fifteen paper lines is too much sorting tonight.

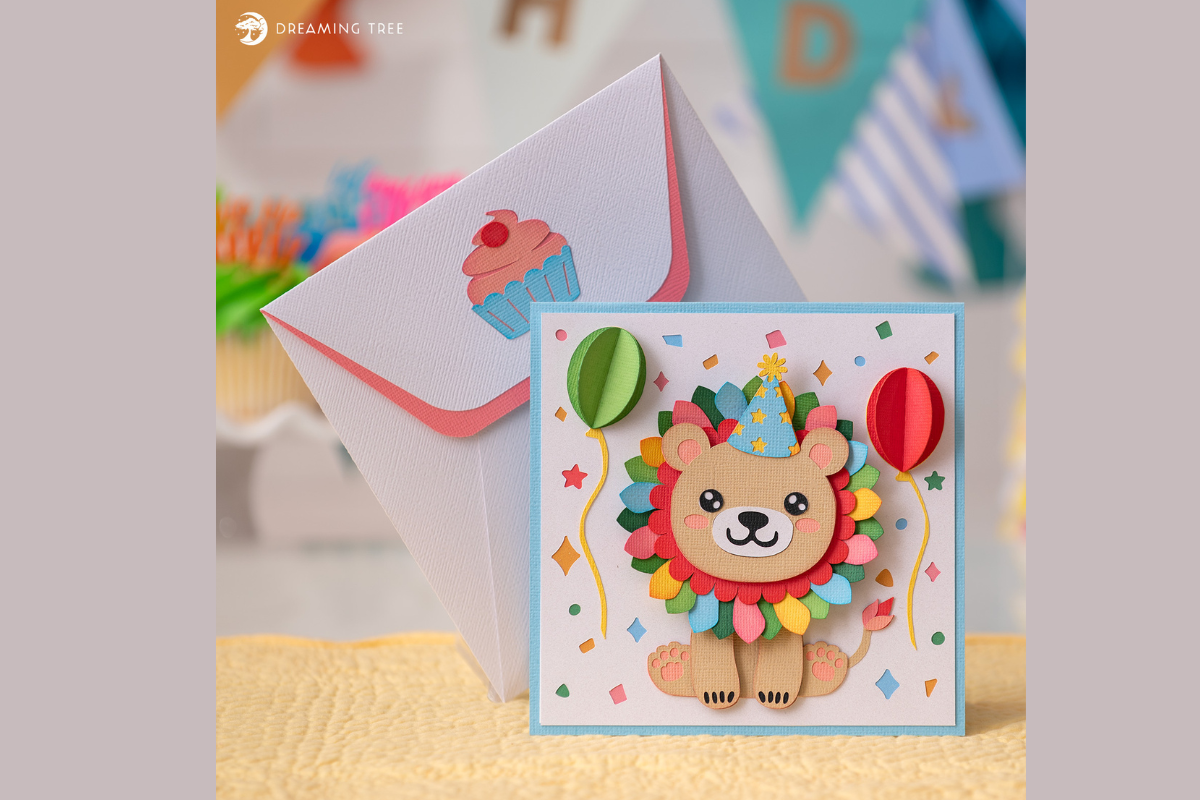

Little Lion Pop Up Card SVG
The sibling design: same small square, same print-then-cut branch, rainbow mane and 3D balloons instead of a photo panel.
Best if the birthday is a child’s and loud reads right. Skip it for an adult recipient.
Pop Up Photo Card
The photo area twists up from the middle, with two more frames and a note pocket. Comes with both a scored and a dashed version, plus a video walkthrough.
Butterfly Pop Up arrives with no printed instructions at all
Butterfly Pop Up Card SVG
You get 7 by 5, a layered butterfly rising over foliage. SVG only, no PDF legend, so the video is your whole guide. Shortest paper list here, six sheets plus vellum.
Best if you’re happy working from video. Skip it if you need a numbered parts map.
Watch for a birthday card that started life as a holiday one
Easter Pop Up Card SVG is a good example of the trap. It comes with an envelope, it has a legend and a video, and its paper list is ordinary apart from a plaid pattern sheet named Welcome Easter, with the whole design built on spring motifs. Recolouring the plaid does not remove the motifs, and your birthday guest opening a card with spring flowers on it will notice.
Celebrate Pop Up has the same problem for me, with a Christmas tree instead. Check the paper list and the layer names before you commit a free download, not just the thumbnail. I find that a seasonal file rarely says so in the title.

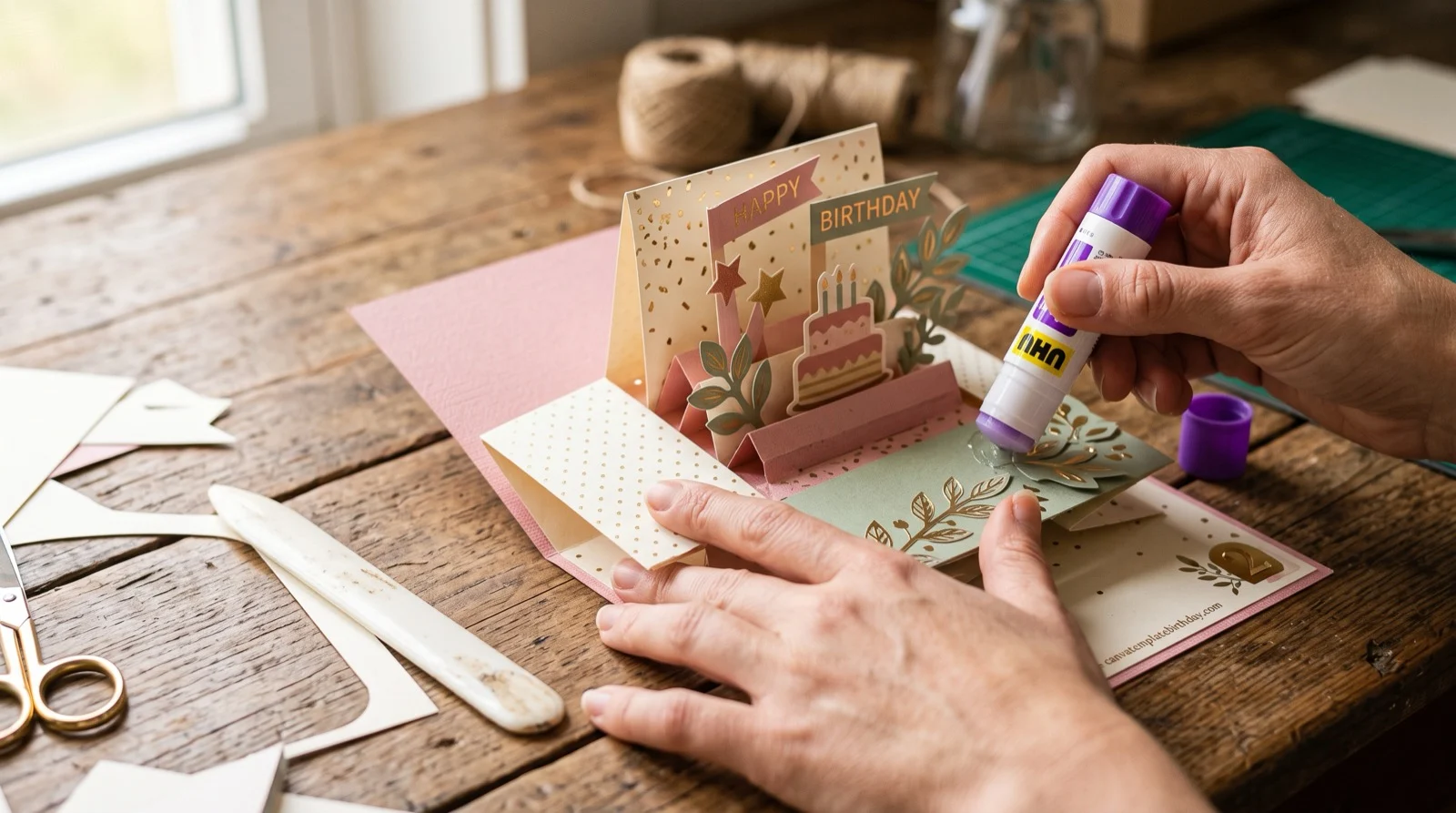

How to fold cleanly when the file has no score line
Dry fit the layers before any glue touches paper, then close the card slowly to find the crease.
I cut the base first and dry fit before any glue touches paper.
On the layered designs the fold sits where the base piece is scored by the machine or, on the files without a marked line, where the two halves of the base meet once the pop-up mechanism is attached.
Assemble the mechanism to the base, then close the card slowly and let it show you the crease before you press it.
Cutting the same mechanism by hand instead, with no marked line at all, is covered in the guide to a birthday cake pop up card that springs without tearing.
The two files that take the guesswork out of this are Pop Up Photo Card and Pop Up Gift Card Holder, because the crease is already drawn for you either way.
Foam squares change that crease. Every millimetre of lift you add on the inside pushes the closed card open, which is why the listings that use foam call it optional.
If the card has to post flat, leave it out entirely, Birthday Balloons is one of the designs here built to close flat for an envelope without it.
Test the fold on an offcut before you touch the real sheet.
Most of these files assume cardstock in the heavy cover range: light enough to score cleanly with a bone folder or a scoring board, heavy enough that the finished mechanism does not sag under its own weight after a few openings.
I reach for a bone folder over a fingernail on every one of these designs.
Glue choice matters more on a pop-up mechanism than on a flat card, because the joint has to hold under repeated flexing instead of sitting still.
I avoid hot glue here because it warps thin cardstock with heat, and it rarely gives a clean edge on a visible tab.
For the mechanism itself, the part that actually lifts when the card opens, liquid glue held flat under a book for an hour outperforms tape every time; tape is fine for the flat panels around it that never flex.
I also change the cutting order, because it decides how forgiving the build is.
If this is the first time trying that base-first order, the Pop Up Gift Card Holder is the shortest file to practise it on, since there is only one base and one mechanism to fit before the whole card is done.
For a same-evening build with the fewest decisions, the shortlist is in the same-day pop-up piece. If the card is for a mother and should survive the week, sort by what it holds afterwards in the keepsake breakdown.
Questions before you cut
How to add score lines in Cricut?
If the file arrives as one group, ungroup it in the Layers panel first, the line the designer meant as a fold is otherwise buried inside the shape and cuts like everything else.
Select that line on its own, open the Operation dropdown, and change it from Basic Cut to Score; it turns dashed on the canvas once it is set correctly.
Then select that scored line together with the base piece and press Attach at the bottom of the Layers panel, or the two parts land on separate mats and the fold never meets the rest of the card.
What can I use as a scoring tool in Cricut?
A Scoring Wheel or Scoring Stylus swapped into the machine’s tool housing presses the line in as it cuts, which is the cleanest result on cardstock in the heavy cover range a pop-up mechanism needs.
Without one, a bone folder run along a dashed cut line by hand after cutting does the same job, slower, but no extra tool to buy for a one-off.
Do you need a scoring tool for a pop-up card?
Only if the file itself doesn’t already give you a scored version to work from, Pop Up Photo Card above ships one so you skip that step entirely.
When the fold comes out of how the layered pieces stack instead of a marked line, a scoring tool helps the crease sit crisper but nothing in the file requires one.
What is a dashed cut line for?
Machines and software that ignore score lines will cut a dashed line instead, giving you a perforated fold you finish by hand. It is the fallback for setups where scoring does not come through.
| Cardstock weight | How it folds |
|---|---|
| 65–80 lb cover | Scores cleanly, fine for a base layer |
| 90 lb cover and up | Best for the moving pop-up piece itself |
| Under 65 lb | Too limp to hold a layered mechanism upright |
Will a pop-up card go through the post flat?
Adding foam squares under any part of the mechanism works against a flat close, since every millimetre of lift pushes the closed card open.
What’s the easiest pop-up mechanism to cut as a beginner?
A single-layer base with one pop-up piece attached, rather than a design with several stacked layers or a print-then-cut branch to align.
Fewer pieces means fewer chances for a scored or dashed line to end up misaligned before the mechanism goes together, Pop Up Gift Card Holder above is built to exactly that pattern.
What cardstock weight holds a pop-up mechanism up?
Anything from 65 lb cover stock upward will hold a fold, but a layered mechanism does better closer to the heavy end: the extra body keeps the pop-up piece standing at an angle instead of drooping forward once the card sits open on a table.
Thinner stock still works for the base if you back it, but the moving piece itself is the one part worth spending the heavier sheet on.
Does a pop-up card need to sit flat overnight after assembly?
Yes, on anything with foam squares or a layered mechanism.
Close the card and set something flat and light on top of it for a few hours after the glue goes down, so the new crease sets in the closed position instead of drying mid-fold.
Skipping that step is the usual reason a finished card refuses to lie flat later.
Key takeaways
- A score line and a cut line are different marks, and a machine given the wrong one folds the card wherever your eye put it, not where the design meant it to be.
- No scored version in the file isn’t a dealbreaker, Ungroup, switch the fold line’s Operation from Basic Cut to Score, then Attach it to the base before cutting.
- A file with no marked line at all still folds cleanly if the crease comes from how the layered pieces stack and you dry fit before any glue goes down.
- Cut and dry-fit the base layer on its own before cutting anything else, a misaligned scored or dashed fold is easy to fix there and much harder once the rest of the mechanism is glued on top.
